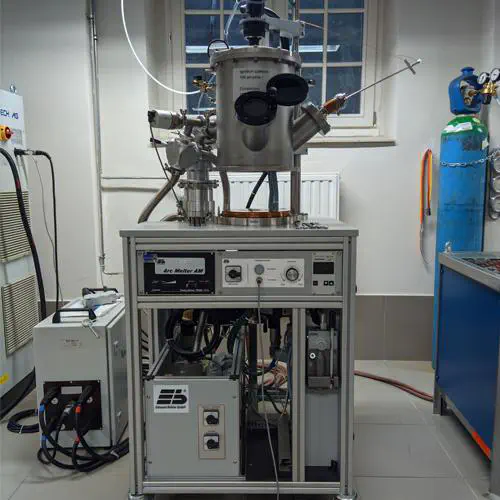

Arc Melter (Edmund Buehler)
The Arc Melter (Edmund Buehler) is a tool for melting and alloying in pure inert gas atmosphere. It si designed for melting samples at temperatures up to 3500°C.
Description
- Designed for melting samples of up to approx. 200 g at temperatures up to 3500°C
- Water-cooled copper crucible plate with multi-purpose moulds (for button and rod samples)
- Water-cooled, double-walled high vacuum chamber
- Electric drive for easy lifting of the chamger
- Motor-driven, water-cooled tungsten electrode which can be moved freely above the crucibles
- Excellent observation of the melting process through viewing port(s)
- Control panel with all major operating functions at the top of the electrode for safe and convenient operation
- Crucible plates with customized moulds on request
- Contactless ignition of the arc
- Different melting programs to prevent overheating of
- Powerful arc melting generators for up to approx. 3500°C
- High-vacuum pumping and measuring system, built into the rack system ready for operation
Detailed specification
- Quantity: max. 20-30 g per charge
- Temperature: 3500° C
- Generators: max. 600 A
- Crucible plate: standard crucible copper plate or customized crucible plates
- Additional features: Sample manipulator, Tilt casting, Suction casting
