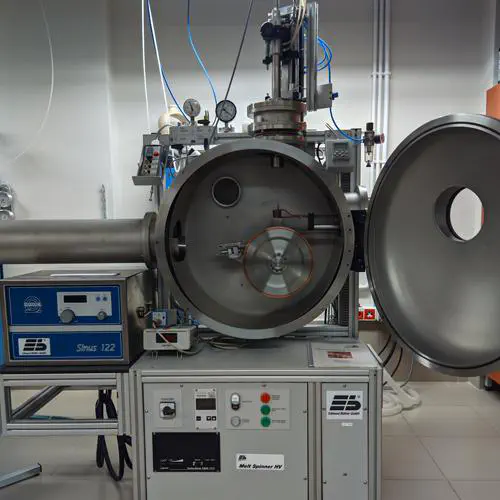

Melt Spinner (Edmund Buehler)

The Melt Spinner (Edmund Buehler) is a tool for the production of rapidly solidified amorphous or nanocrystalline ribbons or splats on a laboratory scale, either in high vacuum or inert gas atmosphere. The alloys are heated by induction in a suitable crucible with slit or round nozzle and ejected on a copper wheel with overpressure. The melt rapidly solidifies and leaves the wheel as a ribbon.

Description

• Laboratory scale system for max. 20 g per run
• Copper spinning wheel ø200 mm
• Automatic crucible positioning system
• Control panel
• Complete system consisting of a high vacuum chamber, rack system, adequate high vacuum pumping system (including turbomolecular or diffusion pump), and RF generator

Detailed specification

• Max. charge: 10-20 g
• Generators: 6 kW
• Spinning wheel: solid copper, ø200 mm
• Width of ribbons: 10 mm
• Crucibles: boron nitride or quartz, with slit nozzle
• Additional features: Infrared quotient pyrometer, casting option
