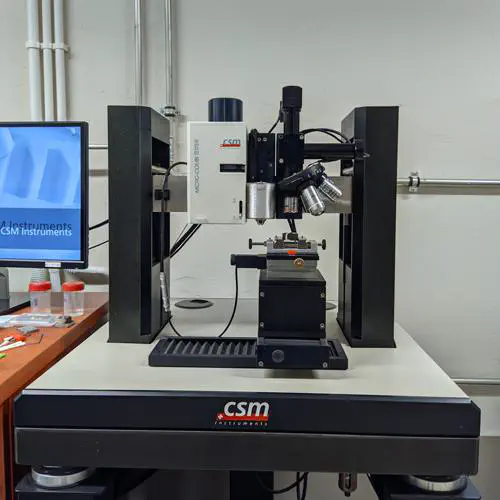

Nanoindentation Tester NHT2 and Micro Scratch Tester (Anton Paar)

Jan 1, 0001

The Nanoindentation Tester NHT2 (Anton Paar) is designed for measuring hardness, elastic modulus, creep, and other surface properties from the nanometer to the micrometer scale. The wide ranges of load and penetration depth enable you to measure the mechanical properties of a large variety of materials. Soft and hard materials as well as thin and thick coatings can be tested. Hardness, elastic modulus, and other properties such as viscoelasticity, creep compliance, and stres-sstrain curve can be determined with a single measurement. The NHT2 is combined with Micro Scratch Tester head on the same platform.

Description

  • True Non-Contact Mode
  • Contact mode
  • Lateral Force Microscopy
  • Force – distance spectroscopy
  • Conductive AFM
  • Scanning Tunneling Microscopy
  • Magnetic Force Microscopy
  • Electric Force Microscopy
  • Nanoindentation

Detailed specification

NHT2

  • Maximum indentation load: 500 mN
  • Load resolution: 0.02 µN
  • Maximum indentation depth: 100 µm
  • Depth resolution: 0.01 nm

MST

  • Maximum load: 30 N
  • Load resolution: 10 µN
  • Loading rate: up to 300 N/min
  • Depth range: 1000 μm
  • Depth resolution: 0.05 nm
  • Scratch speed: 0.1 to 600 mm/min
